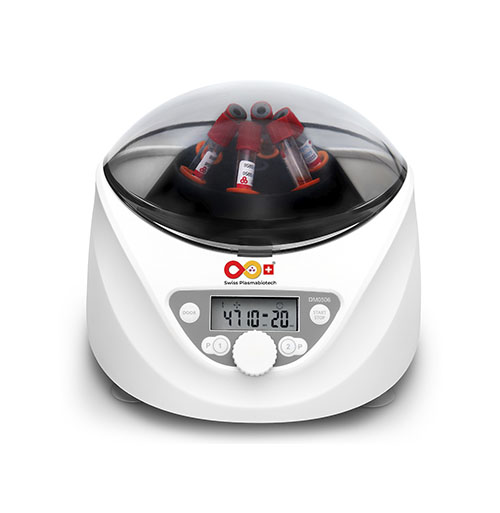

CF0506 Low-speed Centrifuge

CF0506 Low-speed Centrifuge

Share:

The CF0506 is used in laboratories for the separation of serum, plasma, urine, and stool samples. It is suitable for applications in biochemical and medical analyses.

  • Speed range: 300–5000 rpm
  • Setting and display optionally in rpm or relative centrifugal force (RCF)
  • Two programs (P1/P2) allow quick start at the push of a button
  • Two braking stages for adaptation to different requirements
  • Easy-to-read LCD display with audible signal
  • Automatic lid unlock after completion of the run
  • Maintenance-free brushless DC motor

Description

Specifications CF0506
Speed Range 300-5000rpm, increment:10rpm
Max. RCF 2600×g,increment:10×g
Speed accuracy ±20rpm
Rotor type 6x15mL/10mL/7mL/1.5-5mL
Run Time 30sec-99min, HD(continuous running)
Display LCD
Preloaded Program P1/P2
Acceleration/Deceleration 1↑ 2↓
Safety Devices Door interlock, Overspeed detector, Automatic internal diagnosis
Motor Brushless DC motor
Power Requirements Single-phase, 100V-240V,50Hz/60Hz,70W
Dimension[WxDxH] 300X240X180mm
Weight 5.2kg
Advanced features Speed/RCF switch;sound-alert function
